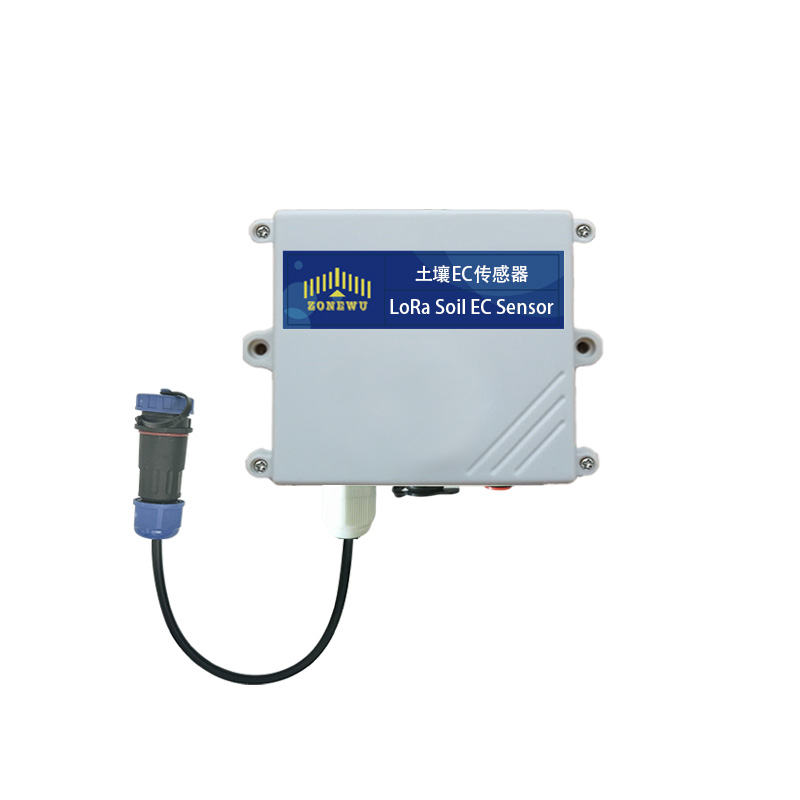

LoRaWAN Soil EC Sensor: A Technological Tool for Accurately Sensing the Secrets of Soil

Accurate understanding of soil conditions is crucial in the fields of agricultural production and environmental monitoring. Soil EC sensors, as a key device, are playing an increasingly important role. It can accurately measure the electrical conductivity (EC) of soil, revealing rich information in the soil and helping various fields make scientific decisions.

Core features and advantages

High precision measurement

The soil EC sensor adopts advanced technology and precise manufacturing processes, with extremely high measurement accuracy. For example, Murata's soil sensor innovatively uses 9 electrodes to effectively eliminate the interference of various uncertain factors such as air, moisture, and ions in the soil through multiple measurement modes and unique algorithms, achieving high-precision EC measurement. Ordinary soil conductivity measurement may result in abnormal values due to the entry of stones into the electrodes, while the multi-mode measurement with 9 electrodes can eliminate such anomalies as much as possible and accurately measure the true conductivity of the soil. This enables the obtained data to accurately reflect the actual condition of the soil, providing a solid and reliable data foundation for subsequent decision-making. ​

Good environmental adaptability

In practical applications, soil EC sensors need to face various complex environments. It has excellent environmental adaptability, with many sensors reaching IP68 protection level and super strong dust and water resistance performance. The electrode is made of highly corrosion-resistant metal material and operates at low voltage to prevent electrode corrosion. Whether buried in damp soil for a long time or in harsh outdoor environments, it can work stably, ensure the continuity and accuracy of measurements, and provide the possibility for long-term monitoring of soil conditions.

Convenient installation and use

The soil EC sensor has a compact design, small size, and easy installation process. Just insert it into the soil and you can quickly start working. Some sensors also support wireless transmission function, which can be connected to devices such as data collectors, smartphones, or computers to achieve real-time data transmission and remote monitoring. Users can obtain soil conductivity data at any time without the need to be on site, greatly improving the efficiency and convenience of data collection, and facilitating users to adjust management strategies in a timely manner based on the data.

Working principle

Soil conductivity is an indicator of soil conductivity, reflecting the content of dissolved salts and ion concentration in the soil. The soil EC sensor works based on the measurement of electrical conductivity. It usually contains an electrode pair inside, and when inserted into the soil, ions in the soil are attracted by the electrode, forming an electric current. The ion concentration in soil solution is directly proportional to the current. By measuring the current, the sensor can calculate the conductivity of the soil and convert it into readable data output. For example, in a certain soil EC sensor, when ions in the soil move between the electrodes to form an electric current, the circuit system inside the sensor will accurately measure the current intensity, and then convert the current intensity into the corresponding conductivity value based on the built-in algorithm, and finally present it to the user through a display screen or data transmission interface.

Application scenarios

In the field of agricultural production

• Precision fertilization: Fertilizer ions in the soil can affect soil conductivity. Through soil EC sensors, farmers can obtain real-time information on the fertilizer content in the soil. When the conductivity value is low, it indicates that the soil fertility is insufficient and additional fertilizer is needed; If the value is too high, there may be a problem of excess fertilizer, and the amount of fertilizer should be reduced. In this way, farmers can apply precise fertilizers based on accurate data, avoid fertilizer waste, reduce production costs, and reduce soil and environmental pollution caused by excessive fertilization, thereby improving crop yield and quality. ​

• Irrigation management: Soil conductivity is closely related to moisture content. During the irrigation process, farmers can monitor the impact of soil moisture changes on electrical conductivity in real-time using soil EC sensors. When the soil conductivity changes with the increase of moisture, it can determine the degree of soil moisture saturation, optimize irrigation plans, avoid excessive irrigation leading to soil salinization, ensure that crops obtain suitable moisture, and promote healthy crop growth.

Environmental monitoring field

• Soil pollution assessment: In areas with frequent industrial activities or pollution, harmful substances such as heavy metals and organic pollutants may exist in the soil, which can alter the soil's electrical conductivity. Soil EC sensors can be used to monitor abnormal changes in soil conductivity and assess the degree of soil pollution. Once the conductivity is found to exceed the normal range, relevant departments can take timely measures to carry out soil remediation and protect the ecological environment. ​

• Wetland and River Ecological Monitoring: Soil EC sensors can be used to monitor changes in soil and water conductivity around wetlands and  rivers, and to understand the exchange of substances between water and soil. This helps to assess the health status of wetland ecosystems, timely detect the impact of water quality changes or other factors on wetland soils, and provide data support for wetland protection and river ecological governance.

Research field

In soil science research, soil EC sensors are important research tools. Researchers use it to accurately measure the changes in soil conductivity under different soil types and environmental conditions, and conduct in-depth research on the physical and chemical properties of soil, as well as the migration and transformation laws of substances in soil. For example, studying the dynamic changes of soil salinity under different seasons and irrigation methods provides scientific basis for the development of agricultural water-saving irrigation technology and soil improvement methods. ​

Soil EC sensors, with their unique core characteristics and advantages, have demonstrated enormous application value in various fields such as agricultural production, environmental monitoring, and scientific research through precise working principles. With the continuous advancement of technology, soil EC sensors will continue to be optimized and upgraded, playing a more important role in our deeper understanding of soil and achieving sustainable development.
